To expand signal coverage of fill signal blind area where the signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop. Etc.
|GSM900+DCS1800||890- 915/1710 - 1785MHz||935- 960/1805- 1880MHz|
|GSM850+PCS1900||824 - 849/1850- 1910MHz||869- 894/1930- 1990MHz|
|GSM900+WCDMA||890- 915/1920 - 1980MHz||935- 960/2110- 2170MHz|
|CDMA800+WCDMA||824 - 849/1920 - 1980MHz||869- 894/2110- 2170MHz|
|LTE800+LTE2600||832- 862/2500 - 2570MHz||791- 821/2620 - 2690MHz|
|GSM850+AWS1700||824 - 849/1710 - 1755MHz||869- 894/2110 - 2155MHz|
|Max. Output Power||10-20dBm||10-24dBm|
|Manual Gain Control||31dB / 1dB Step|
|Automatic Gain Control||>20dB|
|Ripple in-band||≤ 6dB|
|Return loss||≤ -10dB|
|Noise Figure||≤ 6dB|
|WCDMA||Spurious Emission Mask||Meet 3GPP TS 25.143 ( V 6.2.0 )|
|Modulation Accuracy||≤ 12.5%|
|Peak Code Domain Error||≤ -35dB@Spreading Factor 256|
|Time Delay||≤ 1.5 μs|
|Frequency stability||≤ 0.01ppm|
|MTBF||> 50000 hours|
|Power LED||Power indicator|
|Alarm LED||Red||Autoexcitation or High Power|
|Switch||Power Switch\Manual Gain Control Switch|
|Cooling||Heatsink Convection cooling|
|Installation Type||Wall Installation|

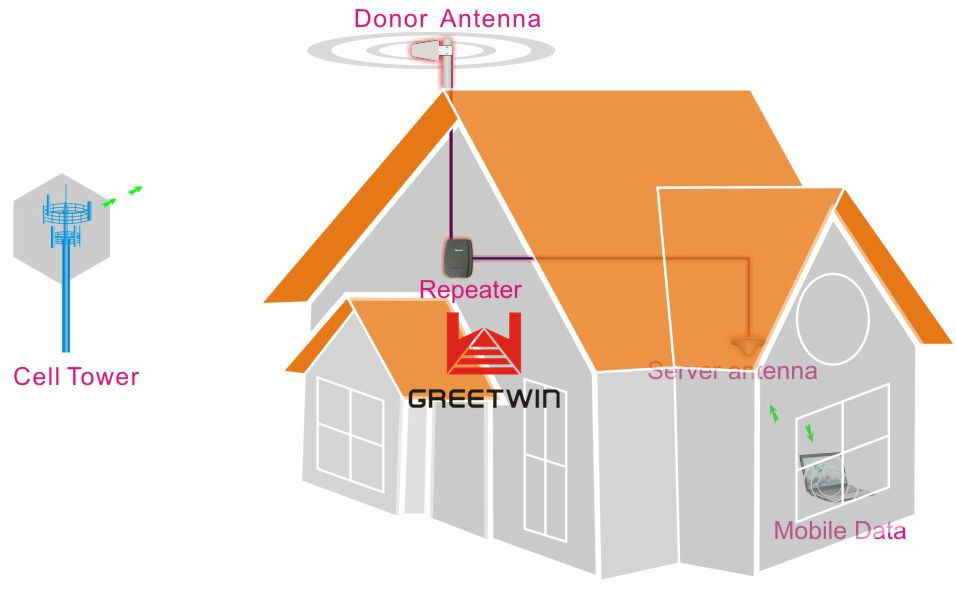

Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless systems in small/medium businesses and home users looking to enhance indoor 2G&3G wireless connectivity. It is connected via coaxial cable to Dual Band Donor Antenna and Service Antenna, Dual Band Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over-saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is an easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The dual-band improves mobile signals with no negative impact on human health.
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
1)Donor antenna: Log Periodic Antenna (9dBi, 806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
1. Smart Function, Intelligent mode setting
smart function called which can be activated via the front panel.
users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. Cover about 500~2500m² Without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wideband signal booster, or customize selective band booster.
7. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G etc
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
|Sample||3-5 business days|
|<20 pcs||7-15 days|
|20-50 pcs||15-24 days|
Q5: Delivery Date of the sample by DHL/FedEx
|Middle East/Latin American||5-7 days|
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2)Output Power &Coverage Areas
|Output Power||Coverage Areas|
*Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
Cellphone signal booster must attach one indoor antenna and one outdoor antenna by two coaxial cables.
Website's price only includes a signal booster, please contact us if you need one set of devices with antenna, splitter, and coupler.
