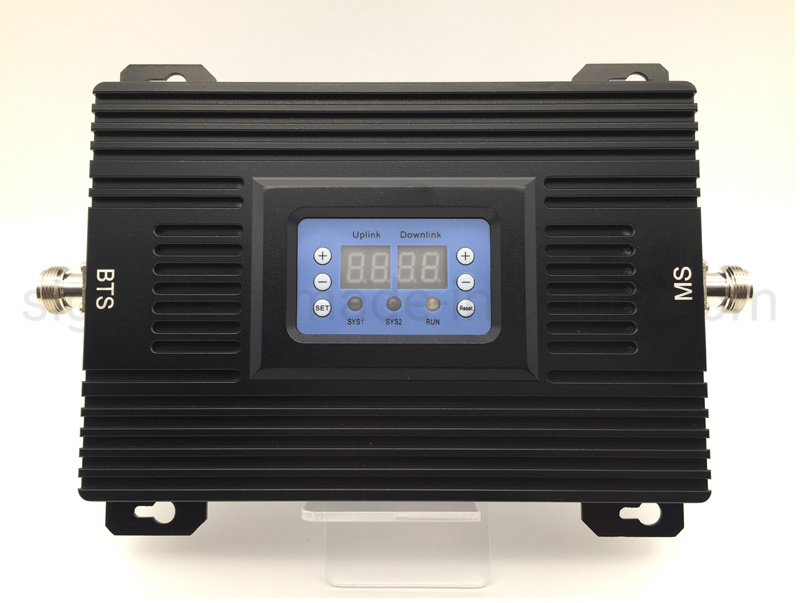

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal RepeaterOur Mobile Signal Booster is a top of the line product that supports frequency bands (Band5 & Band2 cdma 850MHz & 3g pcs 1900MHz). The adjustable controls all you to change your signal preferences for smoother voice and

Featured Products

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater

Our Mobile Signal Booster is a top of the line product that supports frequency bands (Band5 & Band2 cdma 850MHz & 3g pcs 1900MHz). The adjustable controls all you to change your signal preferences for smoother voice and data transmissions. Experience improved signal strength regardless of your phone's present coverage strength or frequency band!

Our products are rigorously tested and offer a perfect 5-bar signal wherever you are. Our quick installation kit recommended easy for install with instructions and takes less than 15 minutes to set up. Our products are also completely harm-free.

Please do not hesitate to contact our staff of highly trained professionals available 24/7 should you experience any problems with your booster. Satisfaction guaranteed!

Technical Sheet
CoverageUseBandFrequencyNumber of simultaneous usersUp-linkDown-link
up to 3000sqmHome,5 & 2850 & 1900 mhz200824-849MHz869-894MHz
office room,
bedroom, packing,1850 ~ 1910MHz1930 ~ 1990MHz
big building
VoltageDimensionsWeight
Input: AC 100~240V; Output: DC 5V/3A190*125*25mm≤1.5KG

FAQ
1. How do I determine the best place to set up my booster?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
2. Should I check the location of my network provider`s nearest tower?
Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.
3. How many users will one booster support?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
Coverage in square metresNumber of supported users
Up to 150 sq mUp to 50 users
Up to 300 sq mUp to 100 users
Up to 600 sq mUp to 150 users
Up to 1500 sq mUp to 200 users



Specification
Features:Photos:
1. Compact size with stable performance.Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater
2. Support antenna isolation detection.
3. Designed for indoor application.
4. MGC available for both uplink and downlink.
5. AGC to control output power at its maximum power level.
6. Low interference & Oscillation prevention.
7. Cost-effective for practical solutions.
8. Extend phone battery life.

Data sheet
Parameter dataUplinkDownlink
Frequency RangeCDMA(Band5-850) &
PCS(Band2-1900)
824 ~ 849MHz /
1850 ~ 1910MHz
869 ~ 894MHz /
1930 ~ 1990MHz
Output Power23 ±2dBm25 ±2dBm
Gain75 ±2 dB80±2dB
MGC (Manual Gain Control)31dB range/1dB step
AGC (Automatic Gain Control)>=25dB
Ripple in Band5dB
Spurious Emission           9KHz~1GHz -36 dBm
1GHz~12.75GHz -30 dBm
Intermodulation Products                   9KHz~1GHz -36 dBm
1GHz~12.75GHz -30 dBm
VSWR 3
MTBF>50000 hours
Power Supply AC:100~240V, 50/ 60Hz;DC:5V 3A
Power Comsumption< 8W
Impedance 50 ohm
Mechanical Data
 RF Connector N-Female
Dimensions (D*W*H ) 190*125*25mm
Net weight  < 0.95Kg
Packing size  (D*W*H ) 300*250*70(mm)
Gross weight < 1.5Kg
Installation Type Wall Installation
Environment Conditions IP40
Humidity <  90%
Operating Temperature  -10ºC ~ 55ºC

Kit accessories recommend:
1x repeater
1x indoor antenna
1x outdoor LPDA antenna
1x power adapter
1x 15 meters cable
1 x 5 meters cable



How it works?
Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater




if any questions or problems please feel free to contact me, Send me email or chat with me directly for your requirements!

Sigbari Dual Band 2g 3G Mobile Signal Booster GSM850+UMTS1900 Cell Phone Signal Repeater
Thx for inquiring-Sigbari!
