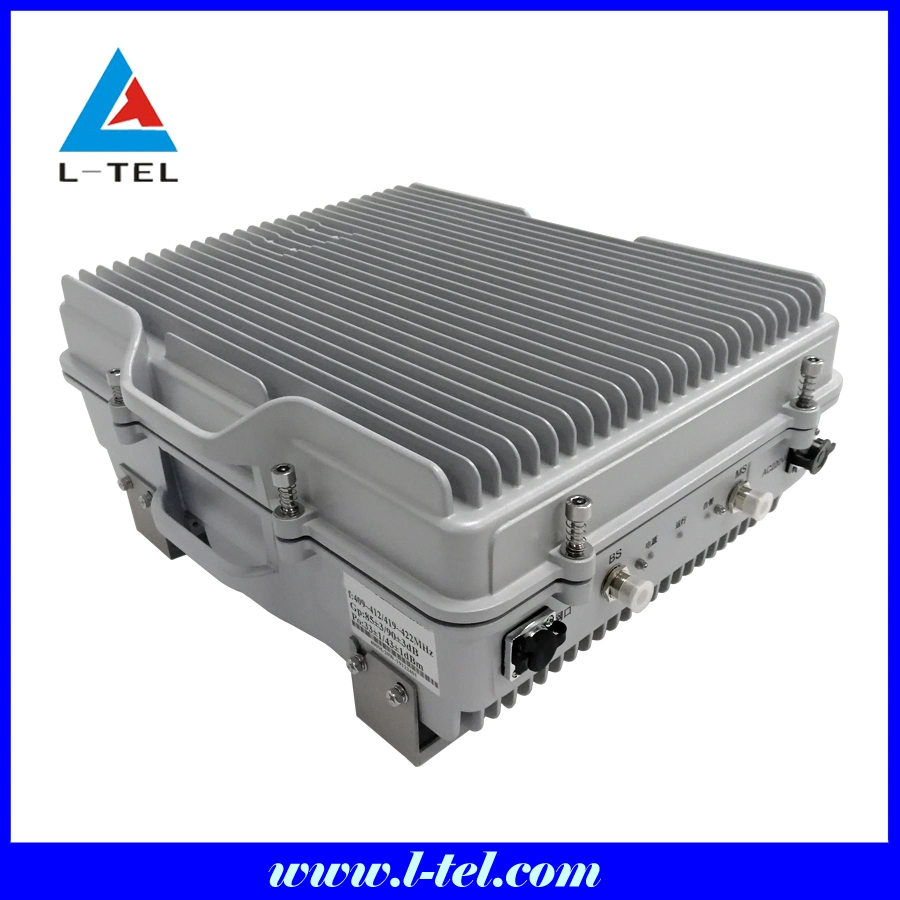

GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater

GSM 900MHz Trunk amplifier 890-915/935-960MHz 2G indoor signal boosterLine repeater Professional Manufacturer       Guaranteed QualityMaking you keep in touch with others smoothly in everywhere.Please inform us your detail requirements, and then we can quote you the price in

Featured Products

GSM 900MHz Trunk amplifier 890-915/935-960MHz 2G indoor signal booster
Line repeater

Professional Manufacturer       Guaranteed Quality
Making you keep in touch with others smoothly in everywhere.


Please inform us your detail requirements, and then we can quote you the price in the first time.


Description:
Trunk Amplifier (TA) can achieve bidirectional amplification of uplink and downlink signal, enhance talking quality, and available enlarge and fill signal blind area, extend coverage range. It is trunkly used to equalize the signal loss of the trunk cables of Micro-honeycomb Indoor Distribution System and Wireless Connection Indoor Distribution System.

GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater
GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater
GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater
Product Features:

(1).Intelligent and modular power amplifier unit adopts high gain and high linearity LDMOS imported power amplifier module, with low power consumption and super linearity design, to improve the transmission power of transmitter.

(2).It has the function of AGC, which can keep the power output constant and ensure the stability and reliability of the product.

(3).It adopts switch regulated power supply with wide regulated range and high efficiency.

(4).In the design, the user's use environment and conditions are fully considered to make the equipment work 24 hours and unattended.

(5).Modular structure, easy installation and maintenance.

(6).All nameplates are laser engraved, beautiful, clear and not easy to wear.

(7).Product categories are complete, and can be customized according to the special requirements of customers.



Series:
Our products, covering from Single Type, Master-slave type, Dual-frequency TA, Three-Frequency TA, 350MHz Police network TA. Including common communication 2G frequency(CDMA450, CDMA800, CDMA1900, GSM, EGSM, GSM1800, GSM1900, DCS, PCS, WLAN), 3G frequency(WCDMA, UMTS, CDMA2000), Trunking Communication(TETRA, iDEN, GoTa, GT800, 350Mhz Police Communication), Digital TV Communication (CMMB, DVB-H, T-DMB, S-DMB), Railway Communication System(450MHz Radio Train Dispatch Communication Series, GSM-R Series), Military Communication, FM Broadcast Communication, UHF,VHF Interphone Communication, Marine Communication, Sea Area Coverage Systems, output power can be chose from 0.5W(27dBm) to 20W(43dBm).

Technical parameters:
Maximum output power(dBm)27~43
Gain(dB)40~60
Gain adjustment range(dB)≥30
Noise factor(dB)≤4.0(at maximum gain)
VSWR≤1.4
Power requirementAC220V±20% 45~55Hz,DC-48V±20% or solar cell supply
Local and remote monitoringPower, gain, standing wave, input power instruction, output power instruction, temperature instruction, fault alarm, etc.
Remote monitoring methodsGPRS or Internet or SMS
Work temperature(ºC)-20~+40
Average faultless working time (H)50000

Typical Application:
Applicable to inner of high building, Tunnels, Subway, Subway market, entertainment city, Parking lots and Hotels, Offices building, such close big buildings' inner, denseness areas and dead angles.
GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater


Company information:
Our company, Quanzhou L-TEL Communication Equipment Co.,Ltd. was founded in 2007, located in the technology economically developed city of Quanzhou, Fujian,China. We are focusing on the development, production and sales of a variety of mobile communication repeaters, signal amplifiers and function modules. We are a professional manufacturer specializing in perfect solutions for wireless signal coverage for a variety of occasions.
GSM 900MHz Trunk Amplifier 890-915/935-960MHz 2g Indoor Signal Booster Line Repeater

Our present manufacturing service:
1)  GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE/TETRA/DMR/VHF/UHF and other Repeaters (PICO Repeater/Dual band/ Fiber Optical / Band or frequency selective /Frequency Shifting) and series Trunk Amplifiers.

2)  Functional Units: Low-noise Power Amplifier Integrative Module, Low-noise Band Selective Power Amplifier Integrative Module, Power Amplifier, Low-noise Amplifier, Channelized Device, Band Selective Device, Band Selective Frequency Shifting Device.

3) All kinds of Antenna/Power divider/Filter/Connector/Cable/Coupler/Combiner/Duplexer.


4)
OEM & ODM is welcome.

Please inform us your detail requirements, and then we can quote you the price in the first time.

For more repeater information,please feel free to contact with us!!
