Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna

Sunhans 2G 3G 4G LTE Mobile Network Signal Booster 900MHz 2100MHz Dual Band Cell Phone Signal Repeater with Indoor and Outdoor Antenna WiFi Signal Amplifier Extender for HomeFeatures:  Frequency 900/2100MHz dual-band, Max. gain 65dB;Aluminum-alloy case by CNC, anti-interference;ALC technology, Small size, Safe & Power s

Featured Products

Sunhans 2G 3G 4G LTE Mobile Network Signal Booster 900MHz 2100MHz Dual Band Cell Phone Signal Repeater with Indoor and Outdoor Antenna WiFi Signal Amplifier Extender for Home

Features:
Frequency 900/2100MHz dual-band, Max. gain 65dB;
Aluminum-alloy case by CNC, anti-interference;
ALC technology, Small size, Safe & Power saving;
Cost effective solution for weak signal zones, reduce drop/off calls;
Expansion and extension of the signal of base station. Optimization of the quality of the signal and source;
For large areas and big house, office....

Full kit, easy to install.

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna


Dual-band Mobile Signal Repeater :
Frequency
900MHz
Up Link (RX) 880- 915MHz
Down Link (TX)925- 960MHz
2100MHz
Up Link (RX)  1920- 1980MHz
Down Link (TX)2110- 2170MHz

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna


Cell phone Amplifier Description:

SKU0404SH100310
ModelSHEG09W21FG
Input power-70 ~ -40dBm
Max Up link gain62dB
Max Down link gain65dB
Auto Level Control (ALC)≥ 20 dB
Max output power17dBm
Impedance50 Ohms
Isolation>70dB
Connector typeN-K female
Power supply5V/2A DC, 100~240V
Repeater size16.8 x 11.5 x 2.1cm
Repeater weight680g
Compact designIndoor use

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna

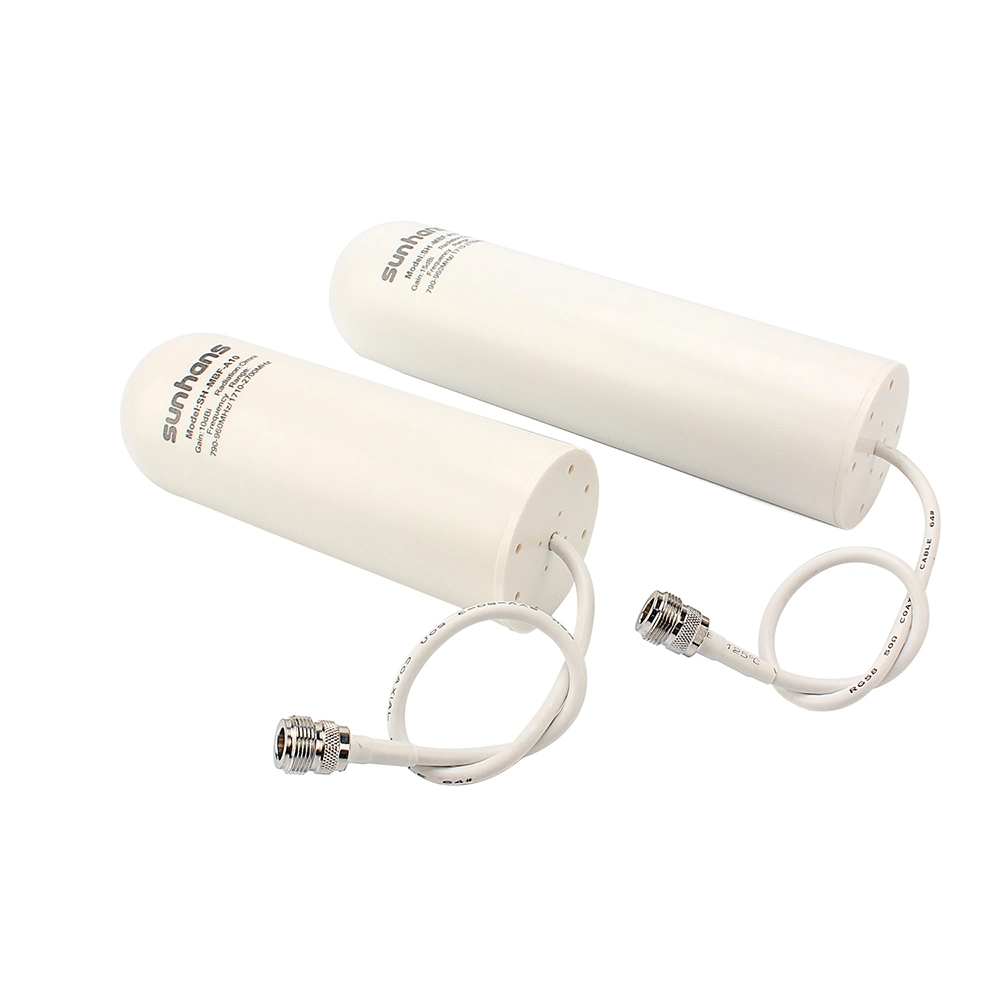

Indoor antenna:
Model NO. SH-MBF-A10
P/NMBFA10015
Barcode6958917601503
Frequency range690~2700MHz
VSWR≤1.5
Gain10dBi
Half-power beam widthH:360° ,   V:60/45°
Polarization typeVertical
RadiationOmni
Maximum input power100W
Input impedance50 Ohms
Cable typeRG174 ( best ) 100% cooper
Cable length90cm
DimensionsΦ5*18cm
Weight450g
Outdoor Antenna:
Model NO.SH-MBF-A15
P/NMBFA15015
Barcode6958917601510
Frequency Rang  690 - 2700Mhz
Gain  15dBi
VSWR≤1.5
Half-power beam widthH:360° ,   V:55/30°
Input Impedance  50Ω
Max  input power100W
Polarization Vertical
Cable typeRG174(best) 100% cooper
Cable length90cm
Mounting waymount on the wall or hold in the pole
Product SizeΦ5*25cm
Weight 500g
Cable:
TypeRG58 50-3 ROHS Coaxial cable
Impedance50 Ohms
Cable Colorwhite


Package contents:
1 x SH-G09D18-D2 dual band repeater
1 x 5m coaxial cable
1 x 10m coaxial cable
1 x 10dBi indoor antenna
1 x 15dBi outdoor antenna
1 x power supply
1 x user manual



All specifications of PA can be customized based on customer requirement.

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna

The repeater makes the signal stronger in places with poor signal coverage such as:
1. Underground areas: basements, parking lots, tunnels, subway, suburb;
2. Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3. Places distant from the BTS like private houses.

Sunhans FDD Lte 4G Mobile Network Repeater 900MHz 2100MHz Egsm Cell Phone Signal Booster with Antenna

Easy Installation
1. Fix up outdoor antenna reception on housetop and point to signal tower.
2. Connect outdoor antenna to "BTS" Port on the Booster through cable.
3. Connect indoor antenna(s) to "User" or "Mobile" Port on the Booster directly or through cable.also.
4. Plug Power Adaptor into AC power socket and finish installation.

How it works?
The outside antenna (sold separately) captures a voice, signal and transfers it to the booster.
The booster receives the signal and amplifies it. Then it transfers the signal to the indoor antenna (sold separately).
Your mobile devices get a stronger signal, fast and consistent data speeds.

Problem Support;
1. If still no signal receipt after activated booster, please check whether outdoor antenna point to signal tower, or the place you install outdoor antenna have strong signal, it need be 3bar signal or more.
2. If can not call out, please adjust the direction of outdoor antenna.
3. If strength is not steady, please check whether outdoor and indoor antennas are too close. Please ensure the outdoor and indoor antenna have max distance, with a wall between and not in a same horizontal line.
